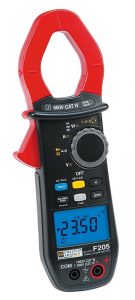

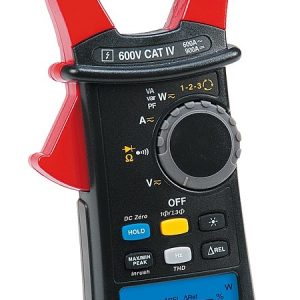

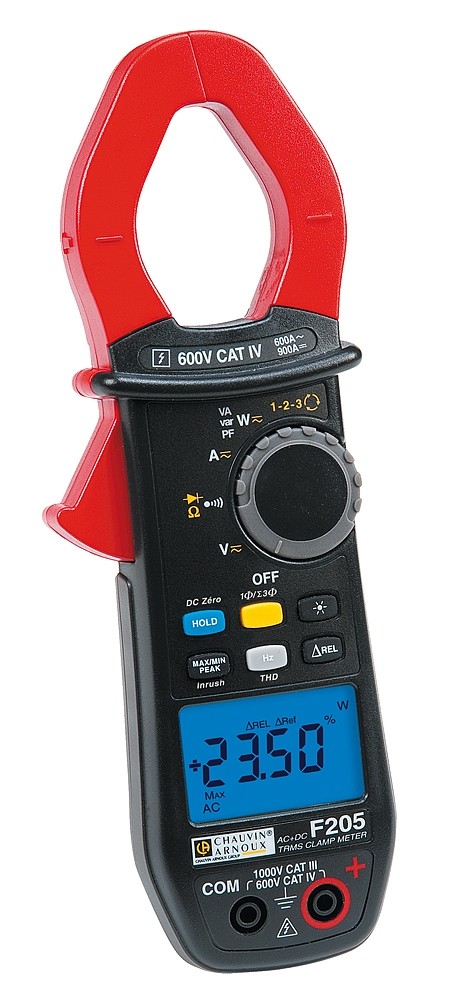

The F205 clamp multimeter is ideal for the needs of self-employed electricians and small and medium-sized business and industries in the electrical sector
Simple to use, the clampmeter offers all the necessary functions in a single, compact solution
Equiped with a fast 12-bit TRMS digital acquisition system
Current: 600 AAC/ 900 ADC
AC and DC voltage up to 1000 V
W/VA/var, PF power values
THD-f and THD-r
Resistance and audible continuity
Min and Max analysis
Relative and differential measurements
TrueInrush current measurements
Phase rotation
IP54 protection
| Attribute | Value |
|---|---|
| Absolute Maximum AC Current Measurement | 600A ac |
| Absolute Maximum DC Current Measurement | 900A dc |
| Absolute Maximum AC Voltage Measurement | 1000V ac |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Absolute Maximum Resistance Measurement | 59.99kΩ |
| Model Number | F205 |
| AC Current Measurement Resolution | 0.01A |
| DC Current Measurement Resolution | 0.01A |
| Best DC Current Accuracy | ±(1% rdg + 3digits) |
| Clamp Meter Type | AC/DC Clamp Meter |
| Best AC Current Accuracy | ±(1% rdg + 3digits) |
| Best AC Voltage Accuracy | ±(1% rdg + 3digits) |
| Best DC Voltage Accuracy | ±(1% rdg + 3digits) |
| Maximum Conductor Size | 34mm |
| Display Type | Backlit LCD |
| Maximum Operating Temperature | +55°C |
| Battery Life | 130 h |
| Jaw Capacity Busbars | 34mm |
| Weight | 354g |
| Safety Category Level | CAT IV |
| Safety Category Voltage | 600V |
| Battery Type | 9V 6LR61 |
| Safety Category | CAT III 1000 V, CAT IV 600 V |
| Best Resistance Measurement Accuracy | ±1 % + 5 digits |
| Power Source | Battery, Mains |
| Width | 42mm |
| Length | 78mm |
| Resistance Measurement Resolution | 100mΩ |
| Dimensions | 78 x 42 x 222mm |
| DC Voltage Measurement Resolution | 0.01V |
| Functions Measured | AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Frequency, Harmonics, In-Rush Current, Phase rotation, Power, Power Factor, Resistance |
| True RMS | Yes |
| Height | 222mm |
| AC Voltage Measurement Resolution | 0.01V |
